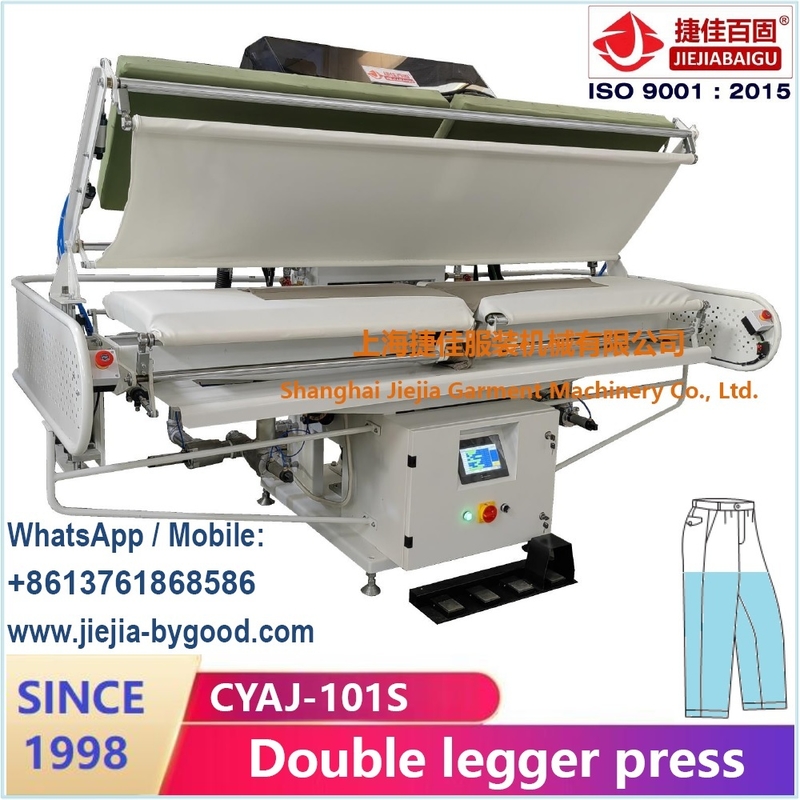

Trouser Double Leger Pressing Machine Vertical Press Touch Screen Stretch Frame
Trouser double legger Pressing Machine vertical press touch screen strech frame
I. Introduction
This steam press is used for shaped-fixed and ironing processing for the high class trousers' legs and rousers which made of woool, synthetic fibric, it is easy in maintance and adaptable to medium and small-size garment manufactures. Both the top mold and bottom mold is vacuum and heated by steam. The machine can be operated manually or automatic that the air operated automatic steam press.
II. Automatic Pant press machine (seat seam)
| Model | CYAJ-101S |
| Control | touch-screen PLC 7" |
| Total pressure | 900kg |
| Steam | 0.4-0.6MPa (35kg/h) 1/2” |
| Compress air | 0.4-0.6MPa (80L/min) 10mm |
| Electric power | 220V/1ph/50HZ |
| Vacuum | 3.0kw extra vacuum pump 2” x 2 |
| Drained water | 1/2” x 2 |
| Dimension | 2600x1200x1650mm |
| Net weight | 850kg |
III. Feature
Double Legger press machine
CYAJ-101S
Scissors-type close & vertical press
(All buck surface press at same time)
Metal buck is suitable for garment
Touch-screen controller
(set: close, frame, press, steam, vacuum)
Period of step: 0.5/1.0/1.5/2.0/2.5 second
3 level safety protection device
Stainless steel board
Steam heating system
Top buck & bottom steam spray
Top buck & bottom buck has vacuum
Famous pneumatic parts
Dimension L*W*H:2250x1300x1650mm
IV. Full pant press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CZBJ-137 | Seat seam | 900x1200x1300 |
| 2 | CZCJ-136 | Pocket | 900x900x1650 |
| 3 | CZAJ-666 | Legger stretch | 1200x1200x1350 |
| 4 | CZAJ-119 | High pressure side seam | 1200x1200x1350 |
| 5 | CZBJ-119 | Side seam | 1200x1200x1300 |
| 6 | CZBJ-102 | Topper | 900x1200x1300 |
| 7 | CZAJ-102 | High pressure topper | 900x1200x1350 |
| 8 | CZAJ-102R | Electric-heat high pressure topper | 900x1200x1350 |
| 9 | CZBJ-101 | Legger | 1200x1200x1300 |
| 10 | CZAJ-101 | High pressure legger | 1200x1200x1350 |
| 11 | CZAJ-101R | Electric-heat high pressure legger | 1200x1200x1350 |
| 12 | CYAJ-101 | Vertical press legger | 1200x1200x1650 |
| 13 | CYAJ-101S | Vertical press double legger | 2650x1200x1650 |
| 14 | VTH-288A | Pant blowing machine / dummy | 500x1200x2000 |
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:
- Fabric shrink / inspect / fuse machinery
- Suits pressing machinery
- Pant machinery
- Shirt machinery
- Jeans machinery
- Knitting machinery
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
V. Q&A
1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
3. Do you have machine video?
Yes. please contact with us.
4. Are you factory?
Yes. We have manufactured for over 20 years.
=========================================
